Capsule Filter
  • Capsule Filter
  • Capsule Filter

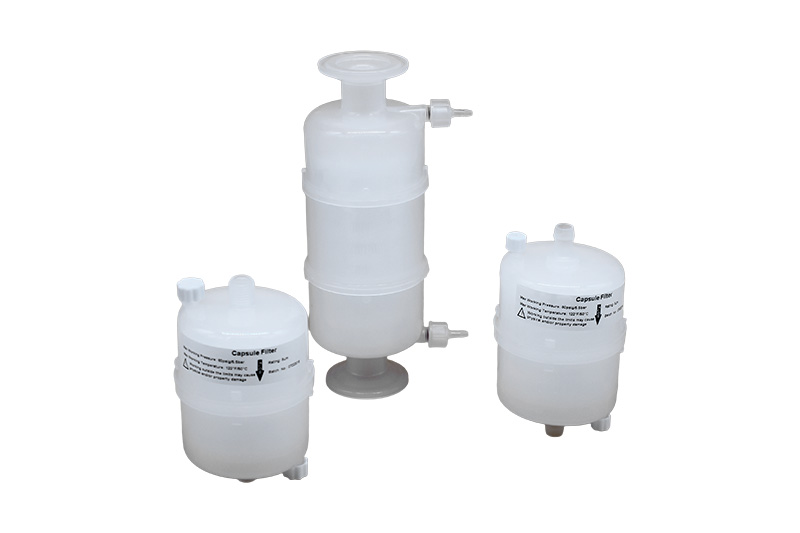

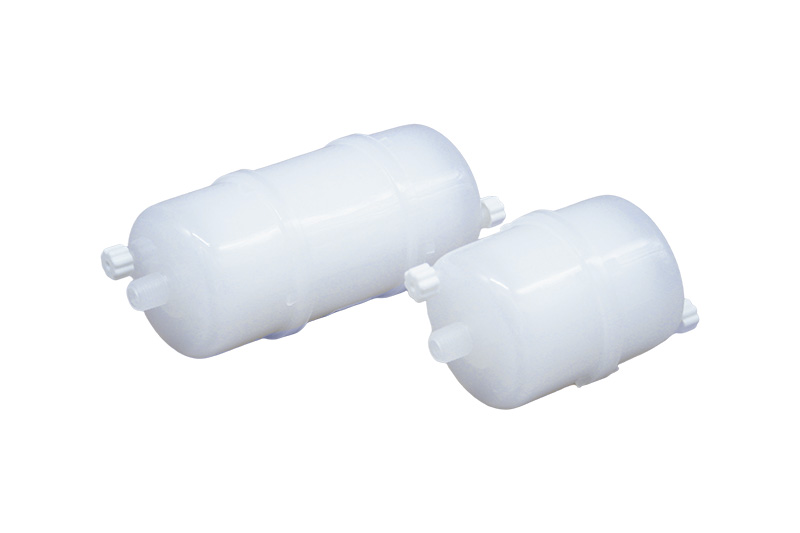

Capsule Filter

The capsule filters are available in fittings NPT, hose barb, swagelok, CPC and so on. The differen possible materials of construction can provide excellent compatibility with a wide range of chemicals such as acids, bases and solvent.

No adhesives, binders, or surfactants are used in the manufacturing process. All units are thermally sealed and 100% integrity tested.

Application: Filtration for organic solvents, chemical reagents and biological solutions. Filtration for gas or pure water.

Contact now

PRODUCT DESCRIPTION:

Applications
  • Food and beverage
  • Fine chemicals and solvents
  • Pharmaceuticals
  • DI Water

Material of construction
  • Media: Polypropylene, Nylon PTFE, Glass Fiber and PES
  • Media support: Polypropylene, Polyester
  • Cage, core and encaps: Polypropylene, Nylon
  • Sealing: Thermally welded

Operating Conditions
  • Maximum operating pressure: Liquid 6bar@ 25 C, Gas: 4.1bar@25 C
  • Minimum burst pressure:8.5bar@25 C

Connections
  • Tri-clamp



Filter Media PP, PES, PTFE, Nylon6
Filter housing PP
Support Material PP
Sealing Thermally Welded
Filter accuracy 0.22μm,0.45 μm, 1.0 μm, 3.0 μm, 5.0 μm
Length 2.5 in，5 in, 10 in
Interface type TC, Hose barb, NPT, SWG
COMPANY PROFILE

MMF BIOTECH CO., LIMITED

MMF BIOTECH CO., LIMITED is a high-tech China Capsule Filter factory and Capsule Filter company founded on 1992, specializing in manufacturing custom Capsule Filter, the filtration products and consumable products of bio life science. The product line including various of filter membranes, filter cartridges, syringe filters, capsule filters, pipet tips, serological pipets, centrifuge tubes and so on.

30 Years Experience

Our plant covers an area of 6000 m² and 100,000-class 1400 m² cleaning room. We have the advanced inspection and production equipments, as well as professional R&D Center and Validation Center. Most of the products are sold to North America, Europe, Southeast Asia, and Middle East. Customers are served with the continuous quality, technical support and convenient aftersale service.
